PL-PH

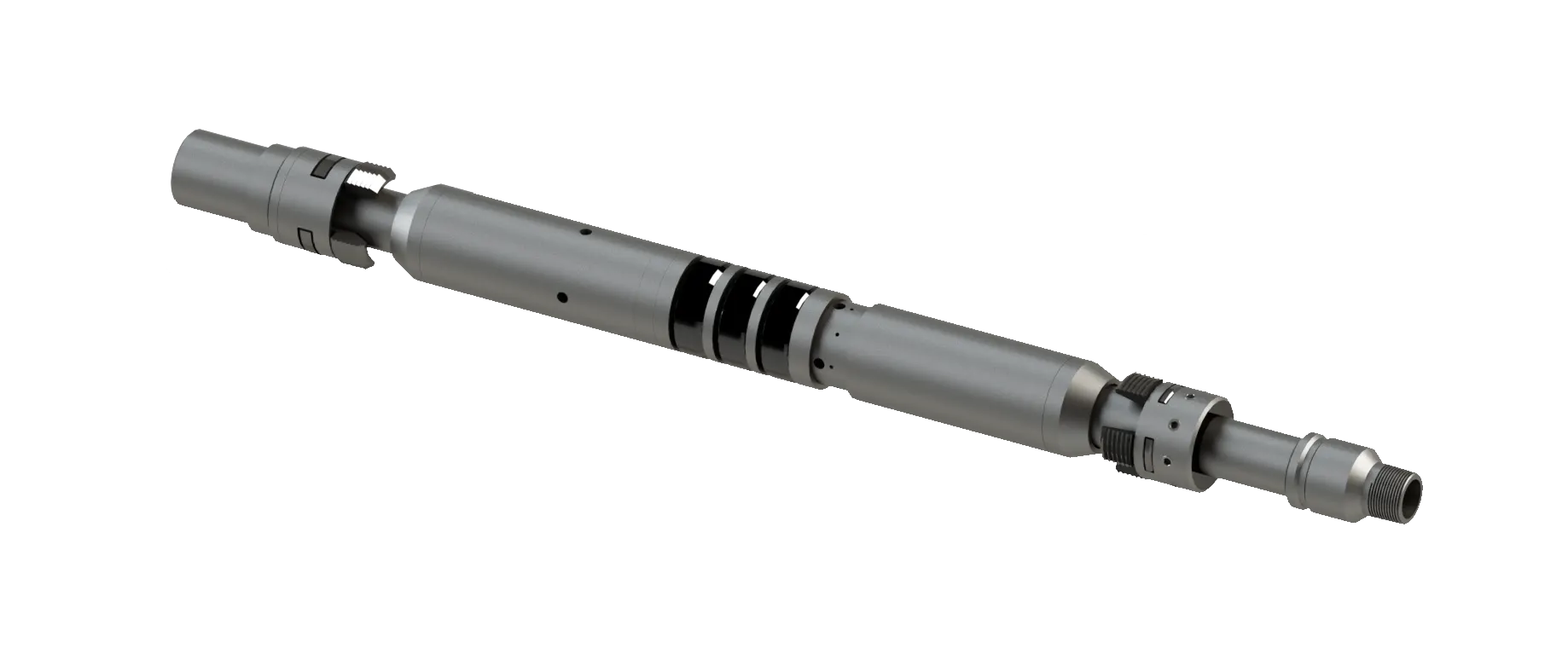

Packer hydraulic
Packer hydraulic is designed to check the technical condition of production casing strings and wellheads by their pressure testing. The use of the hydraulic packer allows in case of leakage of the production casing to determine the location and depth of leakage by interval pressure testing of the casing. Reliable design provides easy installation and removal of the packer. Transferring the packer to the transport position is carried out by removing excess pressure.
- Casing string
- 5 1/2" (139,7) – 9 5/8" (244,5)
- Sizes
- 5
- Equipment line
- External casing packer
Design advantages
- simplicity and reliability of design;
- possibility of installation at different depths;
- multiple installation and removal.
Sizes and specifications
5 sizes, 5 parameters
| Size | Installation range minmm | Installation range maxmm | Maximum pressure — TestingMPa | Permissible pressure drop on the packer elementsMPa | Load capacityt |
|---|---|---|---|---|---|
| 5 1/2" (139,7) | 111 | 127 | 50 | 35 | 180 |
| 5 3/4" (146) | 124 | 130 | 50 | 35 | 190 |
| 6 5/8" (168,3) | 144 | 155 | 50 | 35 | 200 |
| 7" (178) | 150 | 161 | 50 | 35 | 200 |
| 9 5/8" (244,5) | 216 | 229 | 50 | 35 | 250 |
Non-standard sizes are made to order — send the well parameters.
