PL-POP
Pump-out Plug

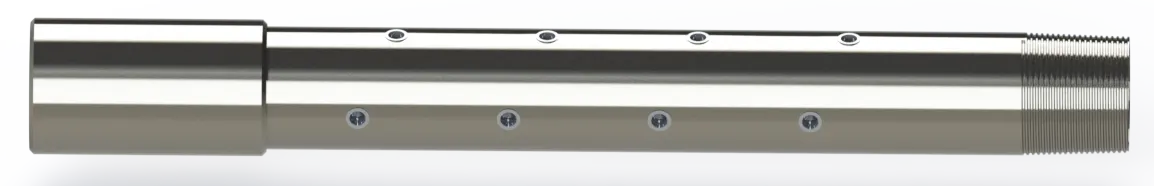

The pump-out plug is installed in the lower part of the pipe string and is designed to isolate the pipe space from the annulus and activate the hydraulic equipment installed above the device by creating an overpressure. To deactivate the pump-out plug, a pressure value is created in the tubular space, providing a full-bore opening the inner .
- Sizes
- 5
- Equipment line
- Downhole equipment
Design advantages
- Possibility to adjust the pressure values for activation and deactivation in the field.
- Simplicity and reliability of design.
- High strength characteristics.
Sizes and specifications
5 sizes, 4 parameters
| Size | Tubing ODmm | Outer diameter max.mm | Inner diametermm | Thread connection |
|---|---|---|---|---|
| 2 3/8"needs checking against print | 60,325 | 77 | 50,8 | 2-3/8" EUE |
| 2 7/8" | 73,025 | 93,2 | 63,5 | 2-7/8" EUE |
| 3 1/2" | 88,9 | 114,3 | 76,2 | 3-1/2" EUE |
| 4 1/2" | 114,3 | 141,2 | 101,6 | At the request of the Customer |
| 5 1/2" | 139,7 | 152,4 | 130,3 | At the request of the Customer |
Non-standard sizes are made to order — send the well parameters.
