PL-LH/MSG
Liner hanger mechanical

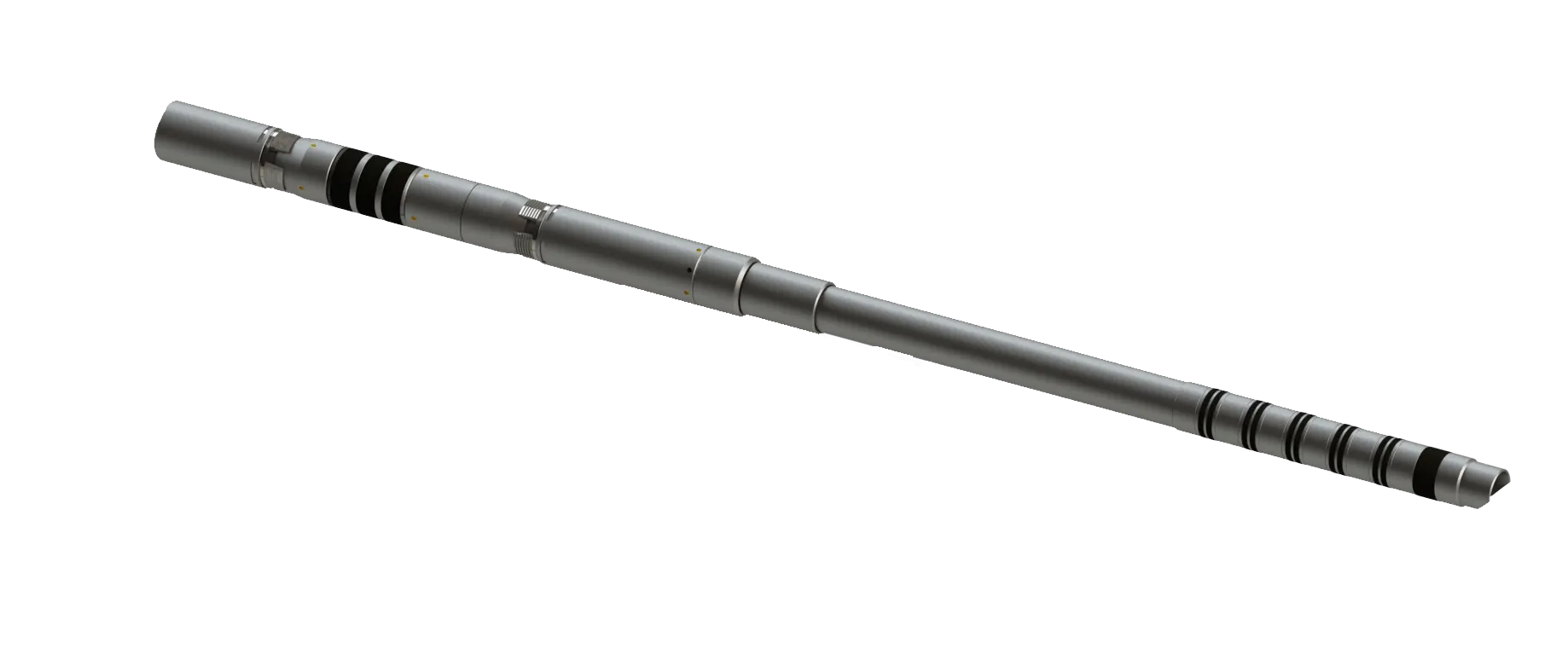

Liner hanger mechanical is designed to suspend casing section "liner" in pre-lowered casing after cementing or without cementing of the well. While cementing casing provides its straightness during cement slurry setting thus preventing unloading on cement slurry. PL-LH/MSG is also used for partially unloading tubing. PL-LH/MSG is installed in both vertical and directional wells and is compatible with various process equipment. It is activated by tensioning the string for 1-2 m and then turning it 1-2 turns to the right followed by unloading it by required value.
- Casing string
- 3 1/2" (88,9) – 9 5/8" (244,5)
- Sizes
- 9
- Equipment line
- Liner Hanger
Design advantages
- lowering and cementing wells in difficult geological and technological conditions;
- allows to perform cementing in different intervals of the well;
- reliable fixation of rams from downward axial movement;
- wide working pressure range;
- easy deactivation;
- reliability and ease of use.
Sizes and specifications
9 sizes, 5 parameters
| Size | Installation range minmm | Installation range maxmm | Inner diameter max.mm | Maximum pressure — TestingMPa | Load capacityt |
|---|---|---|---|---|---|
| 3 1/2" (88,9) | 117 | 130 | 75 | 100 | 80 |
| 4" (101,6) | 117 | 130 | 88 | 100 | 100 |
| 4 1/2" (114,3) | 140 | 160 | 98 | 100 | 120 |
| 5" (127) | 150 | 160 | 108 | 100 | 150 |
| 5 1/2" (139,7) | 168 | 230 | 121 | 100 | 180 |
| 5 3/4" (146) | 168 | 230 | 127 | 100 | 190 |
| 6 5/8" (168,3) | 195 | 230 | 151 | 100 | 200 |
| 7" (178) | 215 | 230 | 159 | 100 | 200 |
| 9 5/8" (244,5) | 295 | 325 | 225 | 90 | 250 |
Non-standard sizes are made to order — send the well parameters.
